Automated Qadvanced Roller Shade

Qadvanced Roller Shades are sophisticated automated shade that offers both ease of use and dependability. Choose from shades in a wide range of colors and styles, with a bevy of options. All automated roller shades can be controlled via remote, smart phone or tablet, or with our exclusive manual override feature, which does not strip the motor, unlike traditional roller shades.

Battery - Battery powered QMotion Shades offer the same benefits as low voltage powered, and add the ability to install in difficult situations as well as function in the absence of electrical supply. Because QMotion battery powered shades use an internal battery pack, there are no visible battery packs or wires to hide or see.

Hard Wired - QMotion Intelligent System hardwired shades deliver a robust and dependable control system. The QIS systems are also compatible with fascia as well as controls. Shades may be controlled with either iOS or Android smart devices or QdR remote for Zigbee HA1.2.

Industry leading small side gaps 1/2”, Batteries is located inside the shade tube.

Battery life expectancy up to 3 years for most shades, Easy battery replacement.

Low voltage wire can accommodate left or right side connection

Maximum width 144" for standard shades (fabric dependent), Maximum height 144" for standard shades.

Shade fabric may be detached from tube without lowering the shade from the brackets.

Battery shades use standard alkaline D cell batteries, with the exception of narrow shades that use AA batteries.

Quiet movement, Manual override ability.

Roller Shade Fabrics

E- Screen

E- Screen with KOOLBLACK

M-Screen


SheerWeave

Infiniti

Decorative

Blackout Eco

Screens


Select the most suitable control for your shades.

Controls

Hembar Activator

QMotion's Qadvanced Automated Shades may be operated with a user-friendly, wireless remote control, which may be stored conveniently in a wall plate.

However, QMotion also offers the flexibility of manual operation. A short tug to the bottom bar of the shade activates the motor, causing the shade to glide to a fully open or preprogrammed intermediate position. Want more privacy? Simply pull the shade downward to your desired position.


Slight tug, under half an inch, will send the shade to the next higher intermediate stop.

Tug over 4-6 inches will lower the shade to where it stops.

A tug of about 2 inches will send the shade to the upper position.

Multichannel Reinvent your remote.

You can enjoy simple solo control of all your shades in the palm of your hand. That's what the QMotion Multichannel Remote provides. Up to six individual or group settings, allows unlimited number of shades per group. All shades programmed to a multichannel remote are controlled together with an "ALL" button on same remote.

All six channels can have an unlimited number of shades per group programmed to it.

Up to three custom presets - supports up, down, 25%, 50%, 75% actions.

Every shade programmed to one of the first 6 channels is automatically added to channel allowing you to control all shades from one channel.

Motion activated zone indicated when remote is tapped or moved.

LED light feedback provides confirmation of your activity.

With the QMotion Multichannel Remote you get innovation with impact. It's a step-saving practical solution that's surprisingly simple and elegantly efficient.

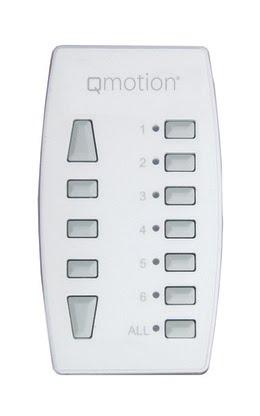

Multichannel Remote
Battery Type: CR 2032 3V
Expected Battery Life: 5 years
Max Shade Groups: 6 plus all button
Transmission Range: 30 feet
Special: Motion activated zone indicator

Qconnect - You've got connections.

QMotion Qconnect allows you to sync your shades with your home automation systems. The result is the ultimate in convenience and flexibility. But that's not all, Qconnect also features:

  • 15 channels so you can control as many shades or groups of shades as you desire.
  • Compatible with most interfaces, including RS232, RS485 or Dry Contact serial.
  • 9V DC power supply or power over CAT 5.
  • Desk or wall mountable, so it's simple to access.
  • As much as 150 feet of radio range for even more flexibility. (Actual range varies in each installation, and many factors can cause results to be lower. Install within range of the shades to be controlled, or use Qrelays to extend the range. Do not install in an equipment closet, unless transmitted signal is received reliably by the shades.)

Automation is meant to make your life easier, so take full advantage with the system designed to sync your home, and your daily life, with Qmotion® Qconnect.


Qconnect

Battery Type: 9V Alkaline

POE: Yes

Expected Battery Life: 5 years

Transformer Voltage: 9V DC power adapter

Connections: RS232, RS485, Dry Contact

Maximum Shade Groups: 15

Transmission Range: 50 feet (extendable with Qrelay. Install where signal is receivable, not in equipment closet.)

Qsync - Manage your shading without putting down the phone.

QMotion shades are as convenient to control as controlling your phone.

With the addition of Qsync technology, QMotion shades move up and down easier than sending a text message.

Qsync works with the QMotion app available in your app store today. It transforms a smartphone or tablet into the most elegant and functional transmitter for QMotion products.

  • Download the latest version of the software for iOs and Android.
  • Smartphone and Tablet control from many units on the same Qsync network system.
  • Plug the Qsync into the network, and it sends QMotion commands as a standard transmitter would.
  • Use pictures and names to identify windows, groups or zones.
  • Create groups that can be controlled with the app together.
  • Control nearly 500 shades or groups from each Qsync.
  • Setup once on a single device, then the settings load to the other smartphones and tablets automatically.

For improved results and coverage, use Qrelays as needed to ensure excellent range and coverage.


Qsync

Battery Type: N/A

POE: No

Transformer Voltage: 9V DC power adapter

Connections: Ethernet through RJ-45

Maximum Shade Groups: Over 450

Transmission Range: 50 feet

Special: App available for iOs and Android devices

Qrelay - Extend your reach.

With Qrelay, you can be assured that your control is complete, even in areas or sites where reception may not be the best. Just add Qrelay to ensure that a signal reaches your QMotion shades, wherever they are located:

  • Use as many as you need; Unique design code technology ensures no cross interference between devices.
  • Two modes of operation to suit your preferences. Zone specific mode allows two different remotes to be learned to the repeater. Echo mode repeats all valid QMotion remote commands.
  • Plugin wherever you have a 110V outlet, or into a properly powered USB port.

Qrelay extends the capability of QMotion shades by assisting signal transmission and reception when needed and is compatible with all QMotion transmitters.


Qrelay

Battery Type: N/A

Expected Battery Life: N/A

Transformer Voltage: via USB-port

Connections: Repeats any remote command

Maximum Shade Groups: Unlimited

Transmission Range: 30 feet

5 Button Single Channel Remote

5 Button single channels remote is a Simple single group, transmitter with LED feedback and magnetic back for wall storage.

This basic transmitter is built to make QMotion use simple, and offers three intermediate positions in addition to Up and Down.

  • 5 buttons to support up, down, 25%, 50%, 75%
  • Long life convenient 2031 coin cell battery
  • 5 year life
  • Magnetic back for simple storing to wall plates
  • Controls unlimited number of shades in a group


5 Button Remote

Battery Type: CR 2032 3V

Expected Battery Life: 5 years

Maximum Shade Groups: 1

Transmission Range: 30 feet

Gen 3 Single Channel Remote

Each remote comes with 6 buttons to support Up, Down and preset positions 20%, 40%, 60%, 80%. The preset positions may be customized. It has Magnetic back for simple storing in wall plates.


Gen 3 Single Channel Remote

Battery Type: CR 2032 3V

Expected Battery Life: 5 years

Maximum Shade Groups: 1

Transmission Range: 30 feet

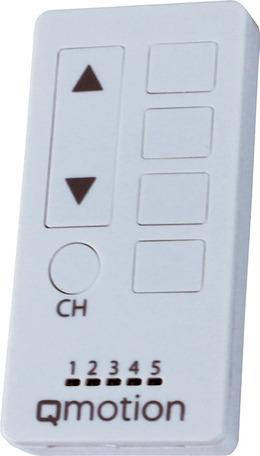

QdR Gen 3 Multi Channel Remote

The new QdR Multi Channel Remote for Gen 3 shades is designed to be sleeker and user friendly. Each remote comes with 6 buttons to support Up, Down and preset positions 20%, 40%, 60%, 80%. The preset positions may be customized. Has Magnetic back for simple storing in wall plates. The remote controls could be used with unlimited number of shades with a range of 30’ to 50’.

  • Up to 5 individual or group settings, unlimited number of shades per group.
  • All shades programmed to a multi channel remote are controlled together with an “All” channel.
  • Motion activated channel indicator when remote is tapped or moved.

ZigBee Multi Channel Remote

Each remote comes with 6 buttons to support Up, Down and preset positions 20%, 40%, 60%, 80%. The preset positions may be customized. Has Magnetic back for simple storing in wall plates. The remote controls has unlimited number of shades in a group with a range of 30’ to 50’.

  • Up to 5 individual or group settings, unlimited number of shades per group.
  • All shades programmed to a multi channel remote are controlled together with an “All” channel.
  • Motion activated channel indicator when remote is tapped or moved.

Qube Coordinator

Our QMotion Qadvanced Shades with ZigBee HA1.2 Controls operate in a self-healing ZigBee mesh network. Enhance and extend the range of your automation system with the Qube coordinator and Range Extenders. Combine with your shades and remotes to create a home automation system that meets the range and network requirements of your environment.

  • Controls Qadvanced with ZigBee HA1.2 Roller andHoneycomb shades
  • Supports up to 32 devices (shades or remotes) per Qubeor 60 devices when using a Range Extender with theQube
  • Program and control shades through the QMotion Appand Qube with ease
  • Control your shades from almost anywhere with a smartdevice on any WiFi network through the cloud


  • 2" x 2" x 1" Dimensions Controls Qadvanced with ZigBee HA1.2 roller and honeycomb shades.
  • Supports up to 32 devices per Qube, or 60 devices maximum per ZigBee HA1.2 network if using Range Extenders. Devices are defined
  • As Qadvanced shades and QdR remotes.
  • Qube without Range Extender supports any combination of 32 shades and remotes.
  • Qube with Range Extender - a Range Extender takes up one of the 32 positions; 2 range extenders = 2 positions.

Qube must be plugged into a local WiFi router. You will need to use the commissioning app from QMotion to setup your ZigBee mesh network and to add your devices.

Power and Communication Panel

QMotion QIS Hardwired shades deliver a robust and dependable control system. The QIS system is also compatible with fascia as well as controls.

  • DC output: 24 Volt, 7.5 Amps
  • AC input: 100-240 Volts, 2.5 Amps
  • Wall Mounted Switches receive power through Power Over Cable (POC)
  • Wireless Remotes power supplied through a CR2032 coin cell battery
  • RJ-45 Ports for Motorized Shades and switches - Quantity 8
  • Communication Ports (RJ-45) - Quantity 2


  • 8"x8"x2" Dimensions
  • DC output: 24 Volt, 7.5 Amps
  • AC input: 100-240 Volts, 2.5 Amps
  • Wall Mounted Switches receive power through Power Over Cable (POC)
  • Wireless Remotes power supplied through a CR2032 coin cell battery
  • RJ-45 Ports for Motorized Shades and switches - Quantity 8
  • Communication Ports (RJ-45) - Quantity 2

Range Extender

This QMotion Qadvanced Shades with ZigBee HA1.2 Controls operate in a self-healing ZigBee mesh network. Enhanceand extend the range of your automation system with the Qube coordinator and Range Extenders. Combine with yourshades and remotes to create a home automation system that meets the range and network requirements of your environment.

Range Extender

  • Extends range for QdR Remote with ZigBee HA1.2 andQube Coordinator
  • Extend the QdR Remote range 30’
  • Operates with Qadvanced with ZigBee HA1.2 roller andhoneycomb shades
  • Use as many Range Extenders as required in aninstallation (refer to limits when using a Qube)

  • 2"x2"x1" Dimensions
  • Extends range for QdR Remote with ZigBee HA1.2 andQube Coordinator
  • Extend the QdR Remote range 30’
  • Operates with Qadvanced with ZigBee HA1.2 roller andhoneycomb shades
  • Use as many Range Extenders as required in aninstallation (refer to limits when using a Qube)

Timer Remote

While it may be easy to control Qmotion Shades from the transmitters, smart phones, or by hand, there is still another way to manage shading.

Consider the Qmotion Timer Remote.

This simple device allows a user to program, through a very simple Windows interface, as many as six scenes. This offers a level of convenience previously only available with premium automation systems.

A scene is a selection of a shade position at a particular moment. This means, if you want the shades to go to the half way position at noon on weekdays- this is a scene.

The Timer remote may be programmed with sunrise and sunset based actions, so astronomical clock functions are easy.

Even though it is a transmitter, it is low powered, so we recommend mounting it close to the shades to be controlled.

So, if you want the ability to automate your Qmotion Shades, the Timer remote may be your solution.


Accessories

Fascia

Including fashionable, color-coordinated fascias will enhance both the form and function of your QMotion shades. Easily mounted either inside or outside the window width, fascias attractively conceal the shade system while adding to the light protection your shades are designed to provide. So they're pretty and practical, all in one.

  • Choose from five standard colors: white, silver, sand, bronze and black
  • Fabric wrapped custom options available on request
  • Fabric wrapped options cover the entire front face and bottom face fascia
  • Fabric wrapped fascias are available up to 120" in length
  • All fascia orders include color-coordinated endcaps
  • All fascias include an integrated light blocking strip at the top for full finish and optimal light management on inside mount shades

The decor is in the details, after all. Adding fascias completes the perfect picture of understated elegance and adds to the effectiveness of your QMotion advanced shading system.


Fascias are available in a range of colors and styles. Verify all options with the latest version of the Product Guide.

QMotion Shade with a Cassette.

With the Cassette system for QMotion Shades, design reaches new levels. Attention to detail is key on QMotion Cassettes.

  • Easy to install with top-back clip
  • Replaces the need for a fascia
  • Shades of up to 8 feet x 8 feet, fabric dependent
  • Color matched front panel pivots up to allow battery changes or shade adjustment, if needed
  • 5 colors available- White, Sand, Silver, Black and Bronze
  • Endcaps provide clean finishes for outside mounted shades
  • Available for QMotion Automated or Qfree roller shades
  • Integrated light blocking wool pile for inside mounted shades
  • Shade completely conceals inside when raised to the top

Choose QMotion Cassettes for the "complete package".


Qlink

Qlink allows you to operate a bank of shades with one motor and little effect on battery life, energy efficiency, or quiet operation. Connecting QMotion shades side-by-side not only allows you to cut costs, your shades will operate in unison when receiving a command by remote.

  • Battery powered, multi-window coverage without wiring. Or, select low voltage QMotion shades with Qlink for even greater power.
  • Exceptionally large coverage.
  • Manual override option; shade system can be operated manually at all times.
  • Compatible with QMotion fascias for an elegant, finished look.

Qlink is outstanding for commercial applications like conference or meeting rooms, lobbies and atriums. And it provides a simple solution for large windows in most homes.


Can reach 10ft tall height.

Maximum recommended panel size is 7 panels.

1 1/8" minimum light gap between shades.

Supports both standard and reverse roll.

Maximum width to receive a 3.3" snap-on fascia is 144".

Side Channels & Sill Rails

Side Channels help block light from entering through the already tiny gap along the sides of QMotion shades, and the Sill Rail does the same at the bottom of the lowered shade.

  • An integrated stop keeps the shade inside the Side Channels when fully raised
  • Side Channels incorporate a wool pile for additional effectiveness
  • Side Channels and Sill Rails are available in all standard colors: White, Silver, Sand, Bronze and Black

Considering that QMotion shades already offer the smallest light gap in the industry at 1/2 of an inch and
that adding Side Channels and Sill Rails reduces that even further, you might think we're passionate about the pursuit of perfection. And you'd be right.


QMotion Side Channels:

Width: 2”

Minimum Height: 12”

Maximum Height: 144”

QMotion Sill Rails:

Dimension: L-shaped, 1” or 2”

Minimum Width: 17 ½”

Maximum Width: 144”

Low Voltage Option

QMotion Low Voltage Shades, you get the nearly soundless operation QMotion is known for, plus a simple, more flexible alternative to wired-in shades. Our Low Voltage Shades also offer:

  • 24V power supply, so there is no need for complication or unsightly electrical work
  • Optional battery backup gives peace of mind knowing shades can still operate in the event of power failure
  • Custom panels that allow you to power as many as 16 shades for optimum flexibility and efficiency
  • Use of QMotion control technologies including the Qsync, Timer Remote and Qconnect
  • Manual override settings that allow adjustments of shades to precise specifications

After all, when you choose Low Voltage Shades, you're getting the quiet, convenient performance of QMotion Shades with a low voltage power option that provides uninterrupted service, year after year.


QMotion Automated Low Voltage:

Minimum Width: 15 ½”

Maximum Width: 144”

Minimum Height: 12”

Maximum Height: 144” (fabric dependent)

QIS Wiring Adapter

QMotion’s Wiring Adapter allows for pre-wired cabling to easily connect to QIS shades, resulting in simple and convenient access to QMotion shades without rewiring your entire system. This 6 inch adapter allows for the translation of communication and power without the added expense of proprietary cabling.


QMotion’s Wiring Adapter allows for pre-wired cabling to easily connect to QIS shades, resulting in simple and convenient access to QMotion shades without rewiring your entire system. This 6 inch adapter allows for the translation of communication and power without the added expense of proprietary cabling.
